SparkFun Thing Plus ESP32-S3
Wiring & flash instructions for ClaudePanel display firmware.
What you’ll need
- SparkFun Thing Plus ESP32-S3 board
- WaveShare RGB-Matrix-P2.5-64×32 (or any HUB75 panel of compatible size)
- External 5 V power supply for the panel — 2 A peak rating, 4 A recommended
- Jumper wires (13 signal lines + at least one ground)
- USB-C cable to your computer
- Recommended: 10 kΩ resistor for OE pull-up (see below)
- Optional: a momentary push button if you want a dedicated “ack” control off-board — the BOOT button on the dev board works by default (see The ack button)
Wiring
HUB75 → GPIO map
Wire each panel signal to the listed ESP32 GPIO. The firmware’s pin assignments for this board are baked in — don’t substitute “conventional” HUB75 pin orderings or colors will be wrong. Pin 8 (E) on the panel’s IDC is unused on a 1/16-scan panel; leave it disconnected.
| IDC pin # | Color / signal | ESP32 GPIO |
|---|---|---|
| 1 | R (top half) | GPIO 1 |
| 2 | B (top half) ★ | GPIO 2 |
| 3 | G (top half) ★ | GPIO 4 |
| 4 | GND | GPIO 42 ◆ |
| 5 | R (bottom half) | GPIO 5 |
| 6 | B (bottom half) ★ | GPIO 6 |
| 7 | G (bottom half) ★ | GPIO 7 |
| 8 | E (NC on 1/16-scan) | — |
| 9 | A (row select) | GPIO 10 |
| 10 | B (row select) | GPIO 14 |
| 11 | C (row select) | GPIO 15 |
| 12 | D (row select) | GPIO 16 |
| 13 | CLK | GPIO 17 |
| 14 | LAT | GPIO 18 |
| 15 | OE | GPIO 21 |
| 16 | GND | board GND pin |
★ Panel-quirk note: on the WaveShare RGB-Matrix-P2.5-64×32 panel, IDC
pins 2 and 3 (and 6 and 7) are swapped vs the HUB75 standard — pin 2
internally drives the blue channel, pin 3 drives green. The firmware
compensates so that the natural sequential wiring above renders colors
correctly. If you substitute a different (HUB75-spec-compliant) panel,
edit main/board_config.h to swap g1↔b1 and g2↔b2 back to
conventional order.
◆ Second-ground note: the SparkFun Thing Plus only breaks out a
single GND pin to its headers, but HUB75 has two IDC ground pins (4 and
16) that both need a reference. Rather than asking you to solder a
jumper or scrounge a breakout strip, the firmware drives GPIO 42 to
0 V at boot — wire IDC pin 4 to GPIO 42 the same way you’d wire any
other signal pin and you’ve got two grounds. The current through this
“GPIO ground” is signal-reference scale (a few mA) since the panel’s
LED-current return rides its own 5 V supply, so it’s well within the
ESP32-S3’s 40 mA per-pin limit. Configured in main/board_config.h as
BoardPins.aux_gnd.

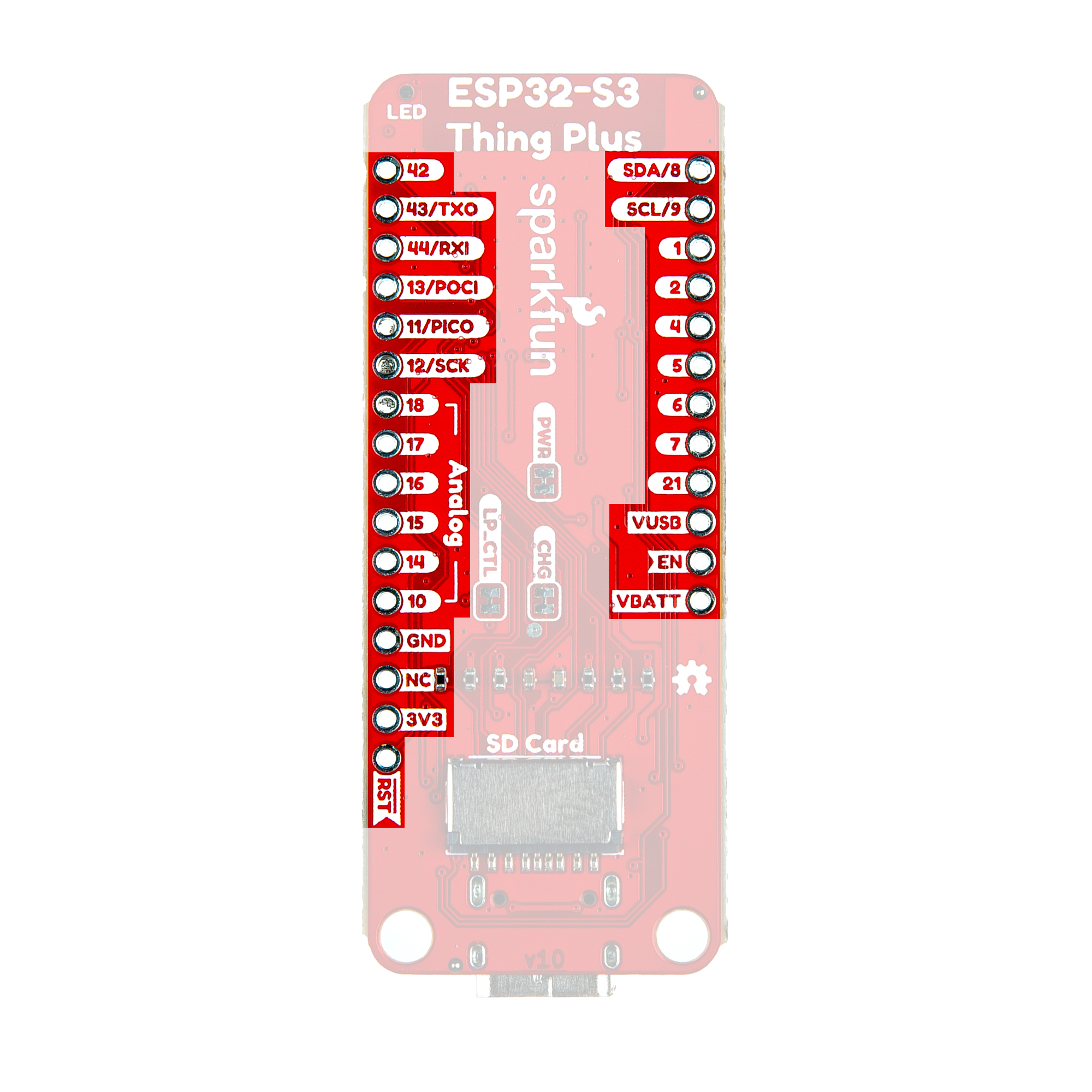

Board pinout reference
Power
- Panel: external 5 V supply, ~2 A peak. Don’t try to power the panel from the ESP32’s 5 V rail — USB can’t supply enough current.
- ESP32: USB-C from your computer.
- Tie the panel’s GND to one of the ESP32’s GND pins. Without a shared ground reference the data signals will be unstable even though the panel may appear to power up.
Flash this board
Plug the ESP32-S3 into your computer with a USB-C cable, then click below. Chrome, Edge, or another Chromium-based browser is required.
Verify it works
- Power the panel from your external 5 V supply.
- After flashing finishes, the panel should show “…” in dim blue near the center, with a slow-breathing blue border. That’s the firmware’s “unknown” state — the chip is alive but no host has sent it any state yet.
-
Quick smoke test from a terminal (macOS):
PORT=/dev/cu.usbmodem* # tab-complete to the real path stty -f $PORT 115200 cs8 -cstopb -parenb raw echo '{"state":"working","subagent_count":2}' > $PORTPanel should switch to amber WORKING with a faster pulsing border and two amber bars near the bottom edge.
The ack button
The BOOT button on your dev board is a single context-sensitive ack — each press resolves the loudest thing on the panel.
What happens on each press
- Loud
BLOCKEDstrobe? First press silences it. The strobing stops, BLOCKED text + indicators drop to a calm muted appearance, the state stays visible. The silence auto-clears once no slot on this ESP is blocked anymore, so the next blocked event re-alarms fresh. - Already silenced, or nothing blocked? The press toggles AFK
instead. So “I see it, going to lunch” is two presses while standing
at the panel: silence, then AFK. The panel dims to ~10% with no
animation, no strobing, no RX pulses, and a large blue
AFKis composed over the middle of each panel as a “you parked this, press to wake” reminder. Even a freshBLOCKEDarriving while you’re gone renders calm and dim — neighbors get nothing but a faint glow. - Coming back? Press once to exit AFK. If a block is still active, it’s auto-silenced on wake so the panel doesn’t start strobing the moment you sit down.
AFK itself persists across state changes — the panel stays dim until you press again, even if Claude finishes a long-running task while you’re away.
Auto-AFK on bridge silence
The panel also dims itself automatically when no bytes have arrived from the bridge for 30 seconds — long enough to rule out a hiccup, short enough to feel responsive. This catches “Pause subscription” tray clicks, bridge crashes, host sleep, and USB unplug with the same calm visual. Auto-AFK self-clears the moment any byte arrives again.
The bottom-left bridge-heartbeat pixel goes red 10 seconds into a silence and stays red until bytes resume; auto-AFK kicks in 20 seconds after that. Two stages, easy to read.
Auto-AFK on bridge silence
The panel also dims itself automatically when no bytes have arrived from the bridge for 30 seconds — long enough to rule out a hiccup, short enough to feel responsive. This catches “Pause subscription” tray clicks, bridge crashes, host sleep, and USB unplug with the same calm visual. Auto-AFK self-clears the moment any byte arrives again.
The bottom-left bridge-heartbeat pixel goes red 10 seconds into a silence and stays red until bytes resume; auto-AFK kicks in 20 seconds after that. Two stages, easy to read.
Thing Plus caveat: on this board, GPIO 0 drives both the BOOT button
and the onboard green status LED. The button still works (a press shorts
hard to ground), but the LED’s current path can occasionally cause
false-positive ack triggers when idle. If you see this, wire a dedicated
button (see below) and set BoardPins.ack_button = 42.
Optional: wire your own button
If you want a button somewhere more reachable than the dev board itself
(e.g., taped to your desk near your keyboard), wire a momentary push
button between any free GPIO and a GND pin. Then edit
BoardPins.ack_button in main/board_config.h to that GPIO number,
rebuild, and flash.
No external pull-up resistor needed — the firmware enables the ESP32’s internal pull-up (~45 kΩ).
- One button terminal → ESP GPIO (e.g., GPIO 42 — free on the left header)
- Other button terminal → any GND pin
- Active-low: not pressed reads HIGH, pressed reads LOW.
For long wire runs (more than ~30 cm) or electrically noisy environments, an external 10 kΩ resistor between the GPIO and 3V3 adds noise immunity but isn’t required. Mechanical bounce is already handled in firmware (60 ms debounce), so a bypass capacitor is unnecessary.
Optional: hardware OE pull-up
At chip reset, OE (GPIO 21) is briefly high-impedance before the firmware
takes over — this can cause a quick visual flash on the panel at boot. To
suppress it, solder a 10 kΩ resistor between OE and 3V3. The firmware’s
early-OE-high block in app_main() trims the window further but a
hardware pull-up is the clean fix.
